Identify the device used as a spherical mirror or lens in the following cases,

Question:

Identify the device used as a spherical mirror or lens in the following cases, when the image formed is virtual and erect in each case.

(a) Object is placed between device and its focus, image formed is enlarged and behind it.

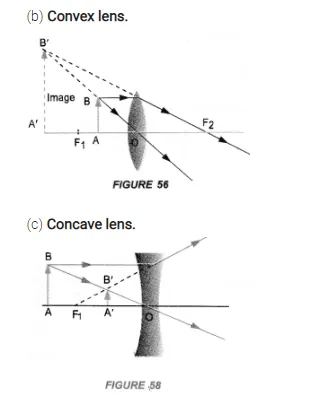

(b) Object is placed between the focus and device, image formed is enlarged and on the same side as that of an object.

(c) Object is placed between infinity and device, image formed is diminished and between focus and optical centre on the same side as that of the

object.

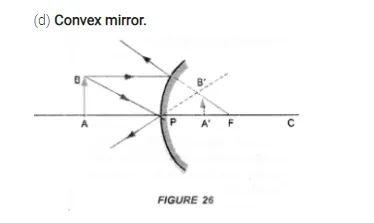

(d) Obj ect is placed between infinity and device, image formed is diminished and between pole and focus, behind it.

Solution:

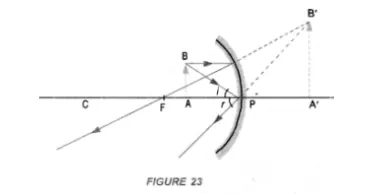

(a) Concave mirror.
