Question:
Using rulers and compasses only, draw an angle of measure 135°.
Solution:

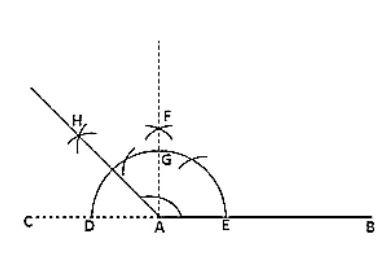

Steps of construction:
1. Draw a line segment AB and produce BA to C.
2. Keeping A as the center and any radius draw an arc which intersects AC at D and AB at E.
3. Keeping D and E as center and radius more than half of DE draw arcs which intersect each other at F.
4. Join FA which intersects the arc in (2) at G.
5. Keeping G and D as center and radius more than half of GD draw arcs which intersect each other at H.
6. Join HA.
Therefore ∠HAB = 135° .
