Identify the circuit (Figure) in which electrical

Question:

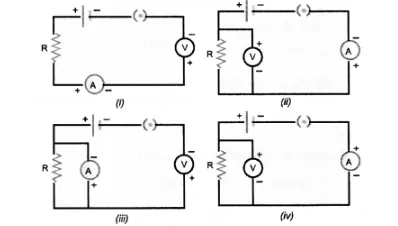

Identify the circuit (Figure) in which electrical components have been properly connected.

(a) (i)

(b) (ii)

(c) (iii)

(d) (iv)

(CBSE 2010)

Solution:

(b).

Explanation : Voltmeter is always connected in parallel and ammeter is connected in series in an electric circuit. Moreover, positive terminals of

voltmeter and ammeter are connected with the +ve terminal of a cell or battery and negative terminals of voltmeter and ammeter are connected

with -ve terminal of a cell or battery.
