A child has drawn the electric circuit to study

Question:

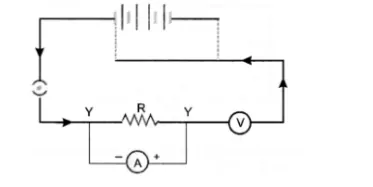

A child has drawn the electric circuit to study Ohm’s law as shown in figure. His teacher told that the circuit diagram needs correction. Study the circuit and redraw it after making all corrections.

Solution:

Ammeter is connected in series in an electric circuit and volt¬meter is connected in parallel to the resistor R. Positive terminals of ammeter and

voltmeter are connected with the positive terminal of battery and negative terminals of ammeter and voltmeter are connected with the negative

terminal of the battery. The correct circuit is shown below.
