Question:

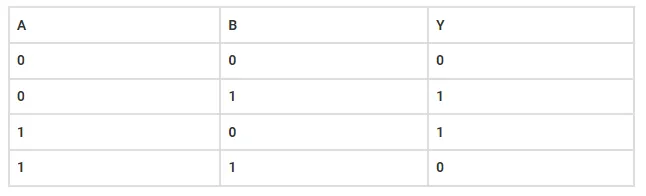

An X-OR gate has the following truth table:
It is represented by the following logic relation
$Y=\bar{A} \cdot B+A \cdot \bar{B}$
Build this gate using AND, OR, and NOT gates.
Solution:
The logic relation is y = A.B + A.B
