Consider the situation shown in figure.

Question:

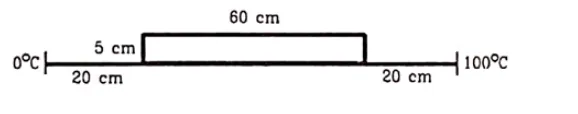

Consider the situation shown in figure. The frame is made of the same material and has a uniform cross sectional area everywhere. Calculate the amount of heat flowing per second through a cross - section of the bent part if the total heat taken out per second from the end at $100^{\circ} \mathrm{C}$ is $130 \mathrm{~J}$.

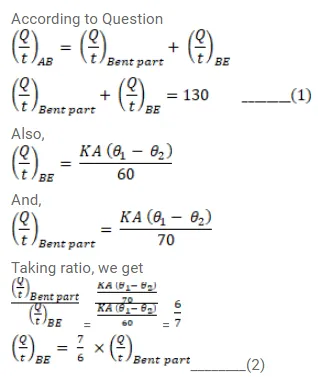

Solution:
