Draw the output Y in the given combination of gates.

Question:

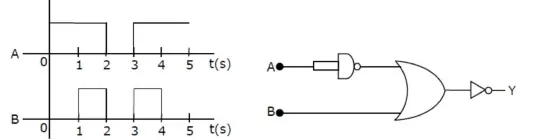

Draw the output $Y$ in the given combination of gates.

  1. (1)

  2. (2)

  3. (3)

  4. (4)


Correct Option:

Solution:

(1)

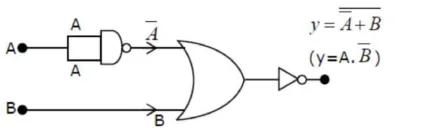

Find output expression $y=A \cdot B$
