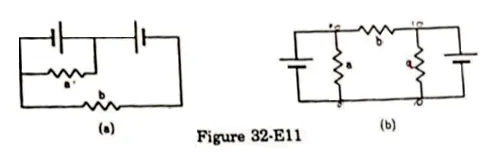

Each of the resistors shown in figure (32-E11) has a resistance of

Question:

Each of the resistors shown in figure (32-E11) has a resistance of $10 \Omega$ and each of the batteries has an emf of $10 \mathrm{~V}$. Find the currents through the resistors a and $b$ in the two circuits.

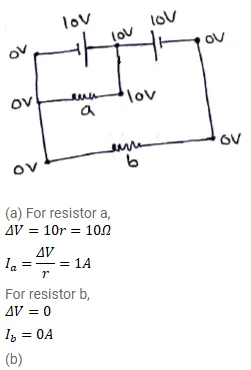

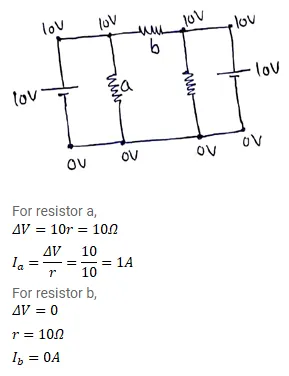

Solution:
