Question:

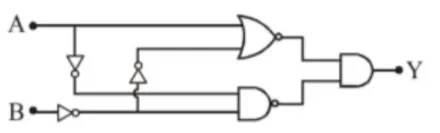

In the logic circuit shown in the figure, if input $\mathrm{A}$ and $B$ are 0 to 1 respectively, the output at $Y$ would be ' $x$ '. The value of $x$ is

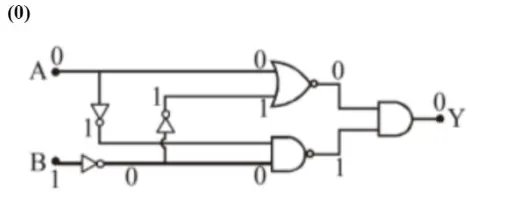

Solution:

In the logic circuit shown in the figure,
