Question:

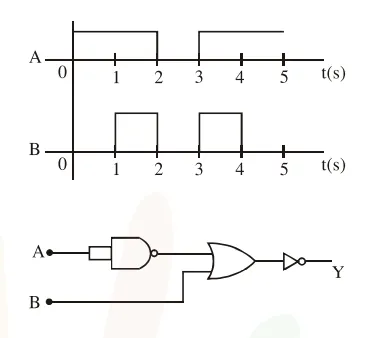

Draw the output signal $Y$ in the given combination of gates :-

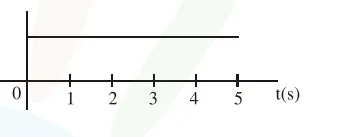

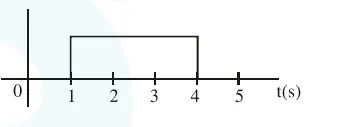

Correct Option: , 4
Solution:
According to gates by Demorgan's law
$\overline{\overline{\mathrm{A}}+\mathrm{B}}=\mathrm{A} \cdot \overline{\mathrm{B}}$
By observation.
