# Find the equivalent resistance of the circuits shown in figure (32-E17)

Question:

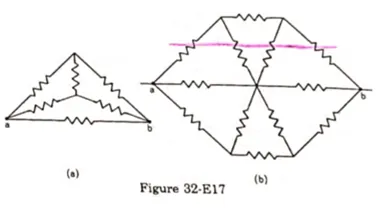

Find the equivalent resistance of the circuits shown in figure (32-E17) between the points a and $b$. Each resistor has a resistance $r$.

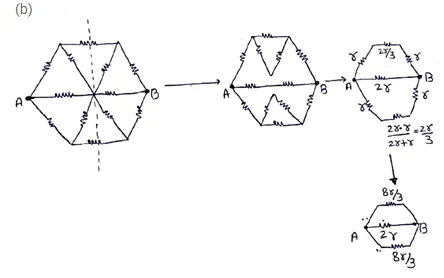

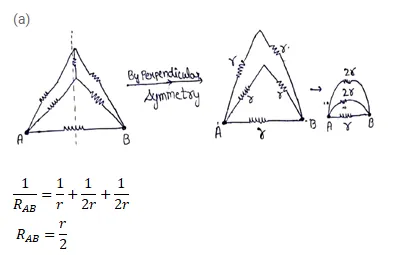

Solution:
