Question:

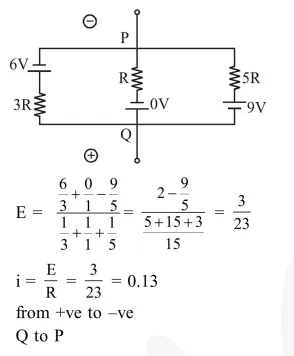

In the circuit shown, the current in the $1 \Omega$ resistor is :-

  1. $0.13 \mathrm{~A}$, from $\mathrm{Q}$ to $\mathrm{P}$

  2. $0.13 \mathrm{~A}$, from $P$ to $Q$

  3. $1.3 \mathrm{~A}$, from $\mathrm{P}$ to $\mathrm{Q}$

  4. $0 \mathrm{~A}$


Correct Option: 1

Solution:
