# In the given figure, DE || BC

Question:

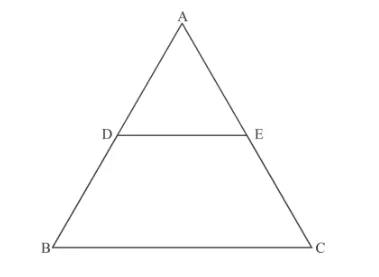

In the given figure, DE || BC

(i) If $\mathrm{DE}=4 \mathrm{~cm}, \mathrm{BC}=6 \mathrm{~cm}$ and Area $(\triangle \mathrm{ADE})=16 \mathrm{~cm}^{2}$, find the area of $\triangle \mathrm{ABC}$.

(ii) If $D E=4 \mathrm{~cm}, B C=8 \mathrm{~cm}$ and Area $(\triangle A D E)=25 \mathrm{~cm}^{2}$, find the area of $\triangle A B C$.

(iii) If $\mathrm{DE}: \mathrm{BC}=3: 5$. Calculate the ratio of the areas of $\triangle \mathrm{ADE}$ and the trapezium $\mathrm{BCED}$.

Solution:

In the given figure, we have DE || BC.

∠DAE=∠BAC       Common

(i) We know that the ratio of areas of two similar triangles is equal to the ratio of squares of their corresponding sides.

Hence

$\frac{A r(\Delta \mathrm{ADE})}{A r(\Delta \mathrm{ABC})}=\frac{\mathrm{DE}^{2}}{\mathrm{BC}^{2}}$

$\frac{16}{\operatorname{Ar}(\Delta \mathrm{ABC})}=\frac{4^{2}}{6^{2}}$

$A r(\Delta \mathrm{ABC})=\frac{6^{2} \times 16}{4^{2}}$

$A r(\triangle \mathrm{ABC})=36 \mathrm{~cm}^{2}$

(ii) We know that the ratio of areas of two similar triangles is equal to the ratio of squares of their corresponding sides.

Hence,

$\frac{A r(\Delta \mathrm{ADE})}{A r(\Delta \mathrm{ABC})}=\frac{\mathrm{DE}^{2}}{\mathrm{BC}^{2}}$

$\frac{25}{A r(\Delta \mathrm{ABC})}=\frac{4^{2}}{8^{2}}$

$\frac{25}{\operatorname{Ar}(\Delta \mathrm{ABC})}=\frac{4^{2}}{8^{2}}$

$\operatorname{Ar}(\Delta \mathrm{ABC})=\frac{8^{2} \times 25}{4^{2}}$

$A r(\triangle \mathrm{ABC})=\frac{8^{2} \times 25}{4^{2}}$

$A r(\triangle \mathrm{ABC})=100 \mathrm{~cm}^{2}$

(iii) We know that

$\frac{A r(\Delta \mathrm{ADE})}{A r(\Delta \mathrm{ABC})}=\frac{\mathrm{DE}^{2}}{\mathrm{BC}^{2}}$

$\frac{A r(\Delta \mathrm{ADE})}{A r(\Delta \mathrm{ABC})}=\frac{3^{2}}{5^{2}}$

$\frac{A r(\triangle \mathrm{ADE})}{A r(\triangle \mathrm{ABC})}=\frac{9}{25}$

Let Area of ΔADE = 9x sq. units and Area of ΔABC = 25x sq. units

$A r[\operatorname{trapBCED}]=A r(\triangle \mathrm{ABC})-A r(\triangle \mathrm{ADE})$

$=25 x-9 x$

$=16 x$ sq units

Now,

$\frac{A r(\triangle \mathrm{ADE})}{A r(\operatorname{trapBCED})}=\frac{9 x}{16 x}$

$\frac{A r(\Delta \mathrm{ADE})}{A r(\operatorname{trapBCED})}=\frac{9}{16}$
