The equivalent resistance

Question:

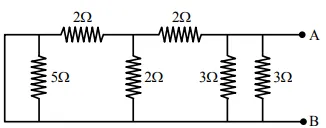

The equivalent resistance of the given circuit between the terminals $\mathrm{A}$ and $\mathrm{B}$ is :

  1. $0 \Omega$

  2. $3 \Omega$

  3. $\frac{9}{2} \Omega$

  4. $1 \Omega$


Correct Option: , 4

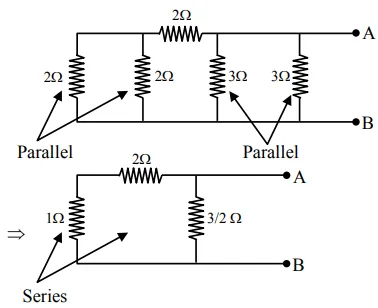

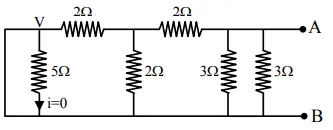

Solution:

$R_{e q}=\frac{3 \times 3 / 2}{3+3 / 2}=\frac{9 / 2}{9 / 2}=1 \Omega$
