Atomic Structure in Class 12 comprises variety of cases with important formulae and key points. So here are the mind maps to help you in remembering all the formulas and important key concepts on finger tips.

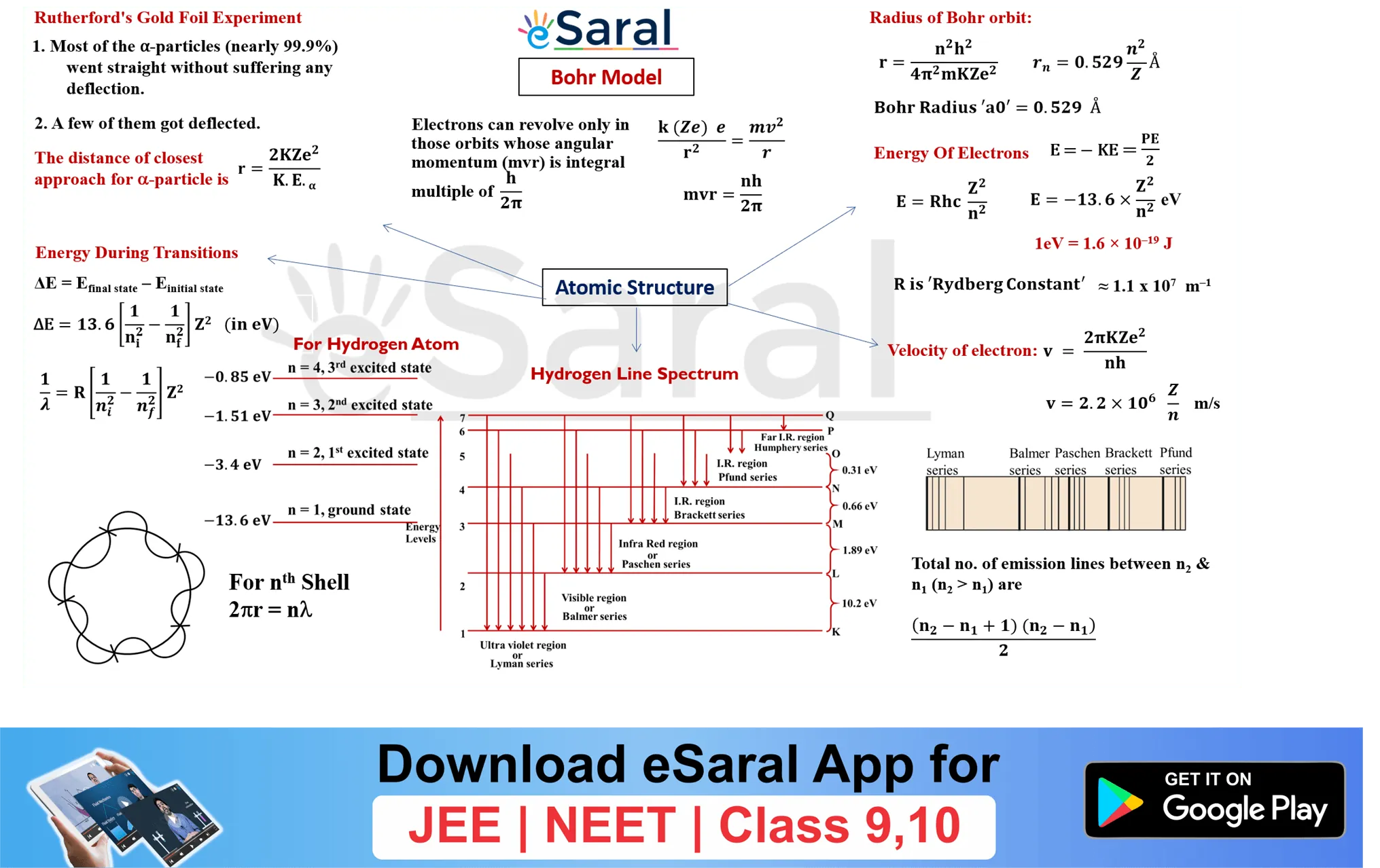

Mind Map of Atomic Structure

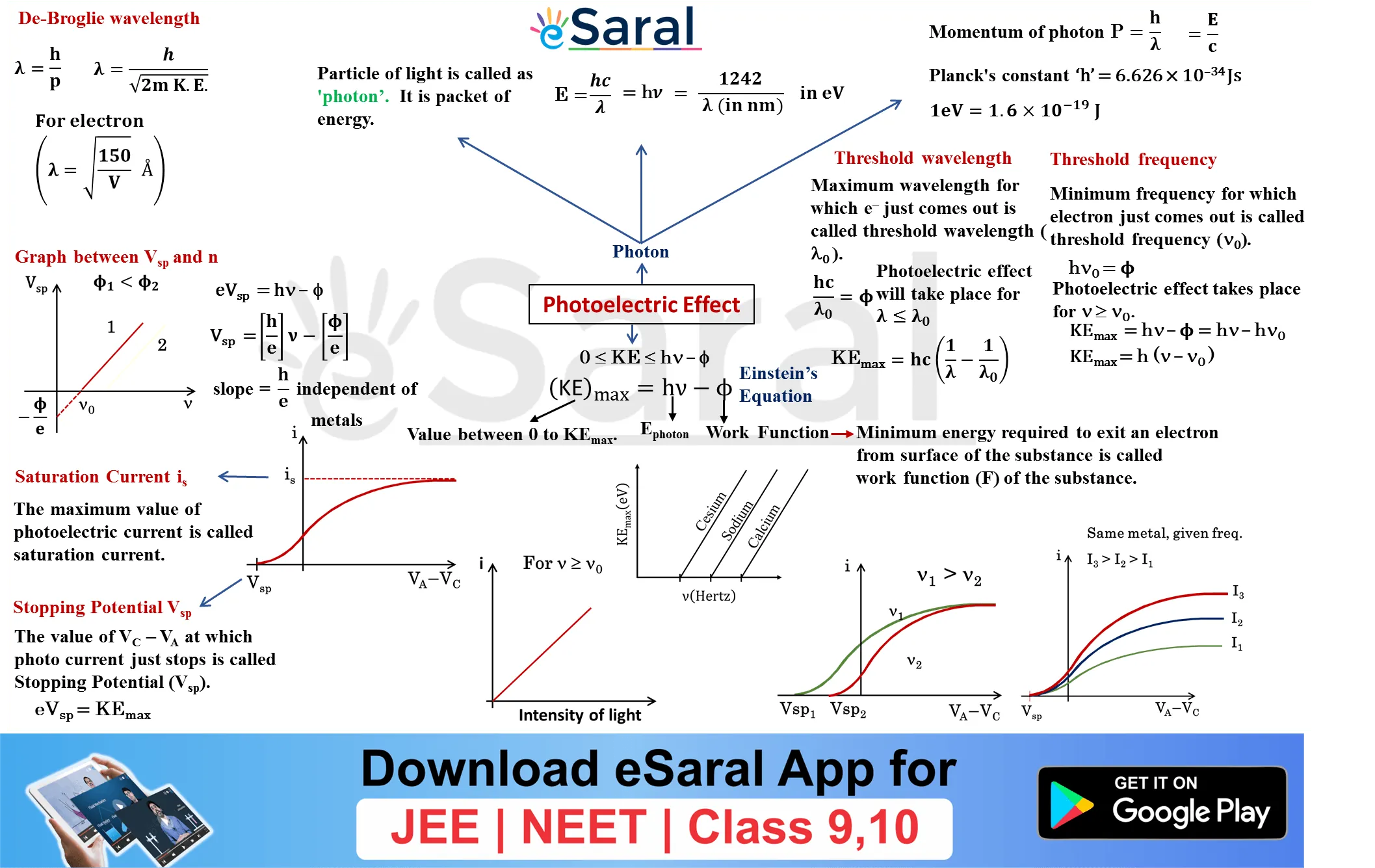

Mind Map of Photoelectric Effect

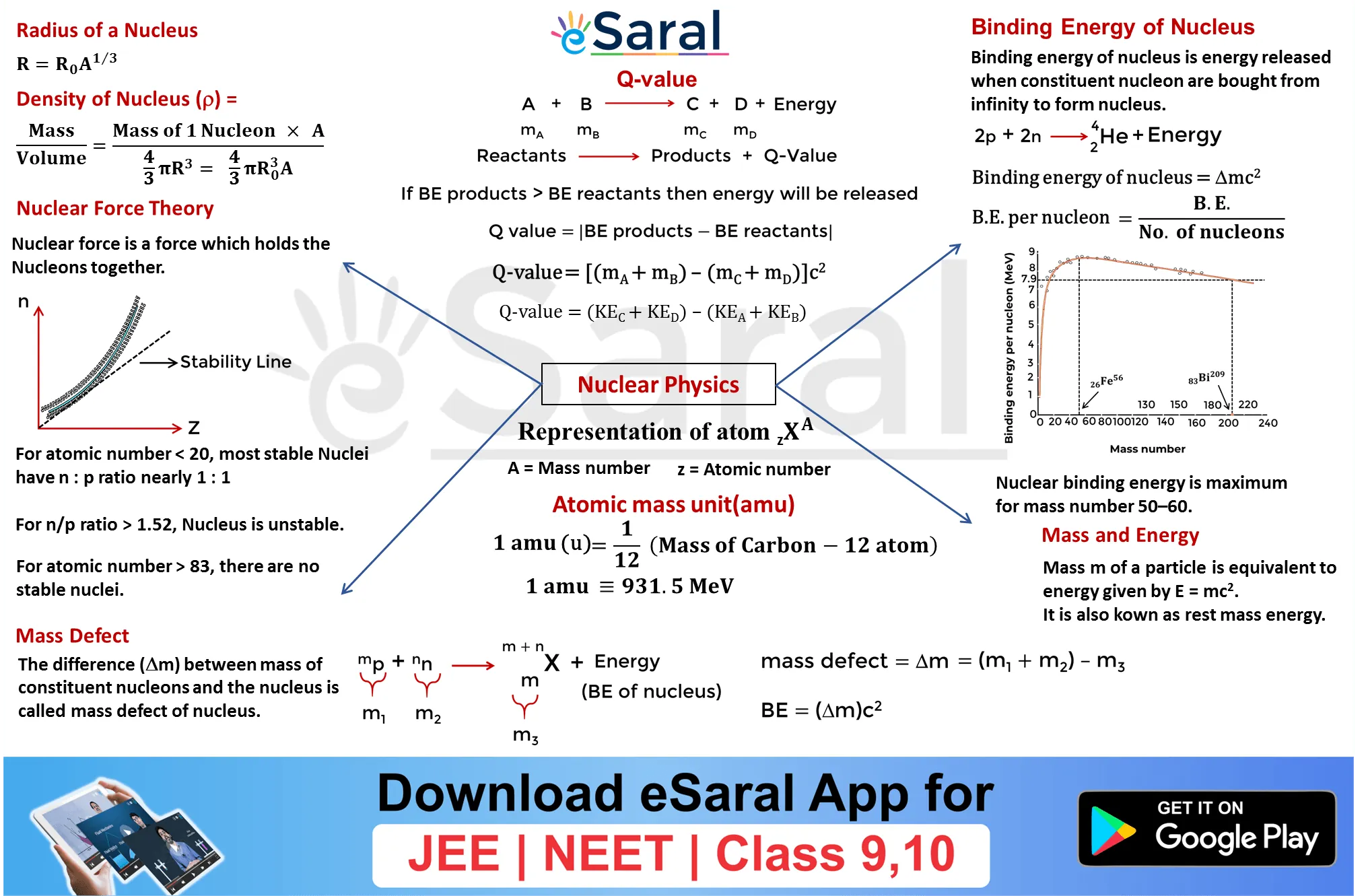

Mind Map of Nuclear Physics
MIND MAP 1 Download
MIND MAP 2 Download

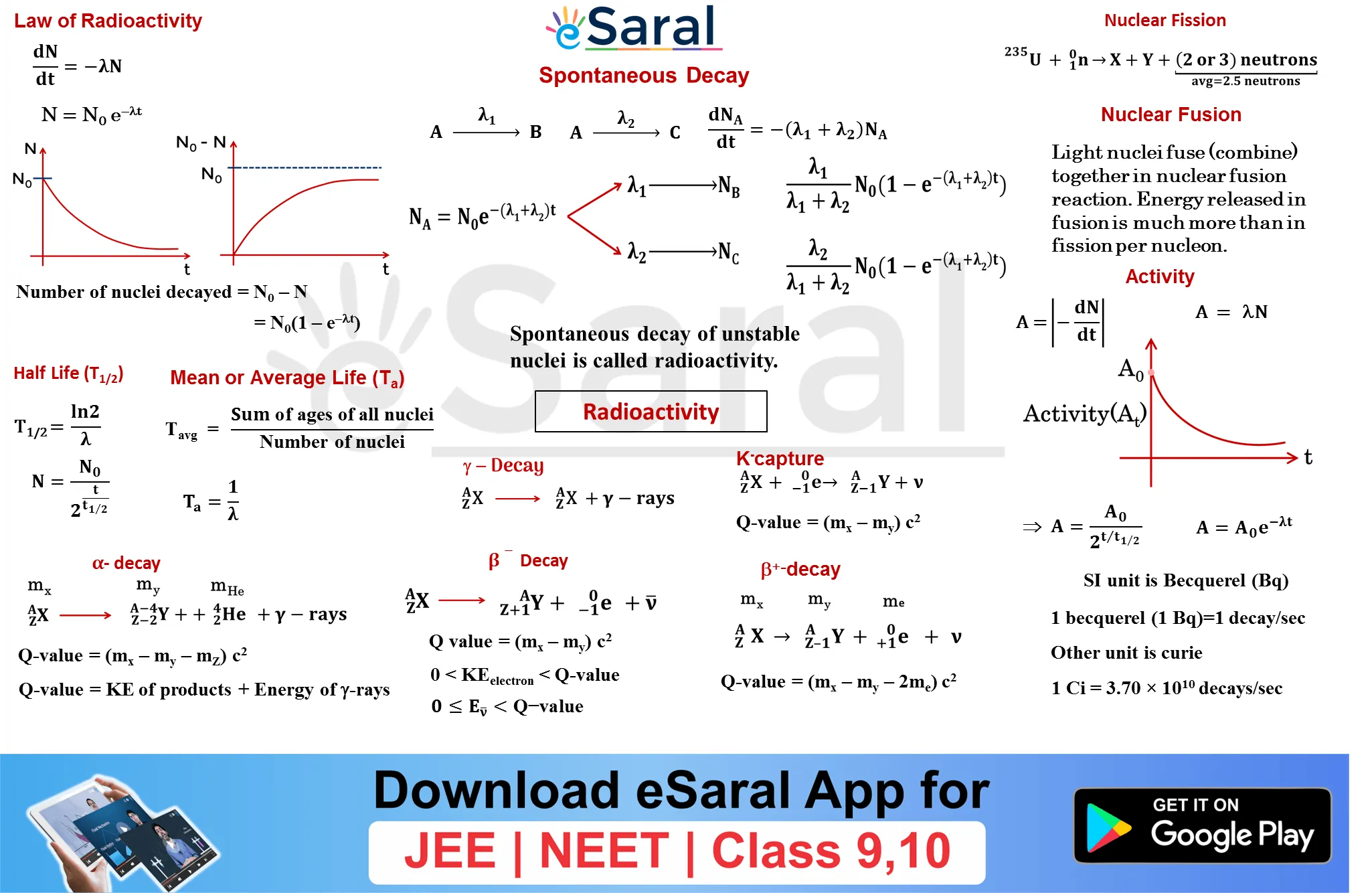

Mind Map of Radioactivity

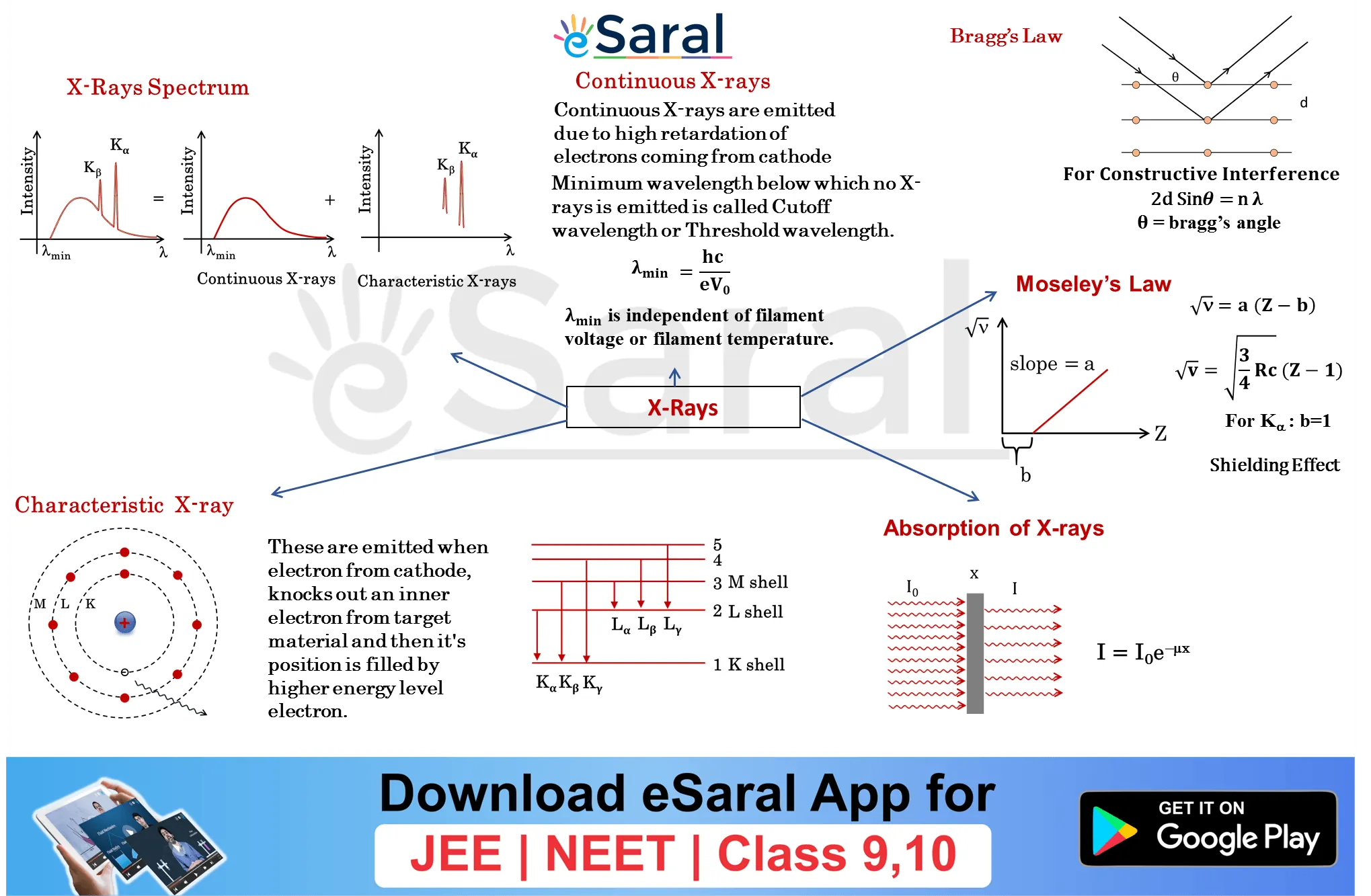

Mind Map of X-Rays
Frequently Asked Questions
Find answers to common questions.
What topics are covered in the modern physics mind maps for Class 12?
The mind maps cover five topics: Atomic Structure, Photoelectric Effect, Nuclear Physics (two maps), Radioactivity, and X-Rays. These maps together address all the major modern physics chapters from the Class 12 Physics NCERT syllabus — Chapters 11, 12, and 13 — as tested in JEE Main, JEE Advanced, and NEET.
Are these mind maps enough for JEE Advanced modern physics preparation?
Mind maps work best as a revision tool, not a primary learning resource. For JEE Advanced, use them after completing NCERT and higher-level problem sets. The Photoelectric Effect and Nuclear Physics maps are particularly useful for JEE Advanced since both topics carry multi-mark integer-type and paragraph-based questions.
How many questions come from modern physics in JEE Main?
JEE Main typically has 2–3 questions from modern physics per paper, based on NTA's official papers from 2019 to 2024. Photoelectric Effect and Atomic Structure (Bohr model) are the most consistently tested subtopics. Revising these two mind maps alone can reliably secure 8–12 marks.
Which modern physics topic is most important for NEET?
Radioactivity and Atomic Structure are the highest-yield topics for NEET, each contributing 1–2 questions per paper. The Radioactivity mind map covers the decay law, half-life, and alpha/beta/gamma properties — all of which appear in NEET Biology-adjacent physics questions. Photoelectric Effect is also tested regularly.
How do I download the modern physics mind maps from eSaral?
Each mind map on this page has a dedicated Download button placed directly below its heading. Click the button to download the PDF. No login is required for the basic download. For access to the full mind map library across all subjects and classes, download the eSaral app, where Kota-quality content from IIT Bombay faculty is available in one place.
