A man standing on the deck of a ship, which is 8 m above water level.

Question:

A man standing on the deck of a ship, which is 8 m above water level. He observes the angle of elevation of the top of a hill as 60° and the angle of depression of the base of the hill as 30°. Calculate the distance of the hill from the ship and the height of the hill.

Solution:

Let be height of hill CE and a man is standing on a ships at the height of 8meter above from the water level. Let AB = 8, BC = xAD = BC, AB = DCDE = h, and

We have to find x and H

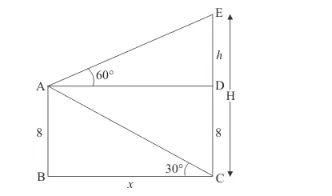

The corresponding figure is as follows

In $\triangle A B C$,

$\Rightarrow \quad \tan 30=\frac{8}{x}$

$\Rightarrow \quad \frac{1}{\sqrt{3}}=\frac{8}{x}$

$\Rightarrow \quad x=8 \sqrt{3}$

Again in $\triangle D A E$,

$\Rightarrow \quad \tan 60^{\circ}=\frac{h}{x}$

$\Rightarrow \quad \sqrt{3}=\frac{h}{x}$

$\Rightarrow \quad h=x \sqrt{3}$

$\Rightarrow \quad h=24$

\text { Therefore } H=h+8

$\Rightarrow \quad H=24+8$

$\Rightarrow \quad H=32$

Hence the required distance is $8 \sqrt{3} \mathrm{~m}$ and height is $32 \mathrm{~m}$.
