Question:

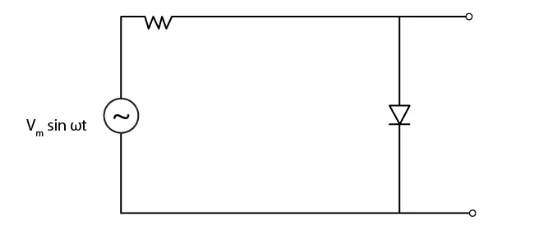

The output of the given circuit in the figure
(a) would be zero at all times
(b) would be like a half-wave rectifier with positive cycles in output
(c) would be like a half-wave rectifier with negative cycles in output
(d) would be like that of a full-wave rectifier
Solution:
(c) would be like a half-wave rectifier with negative cycles in output
