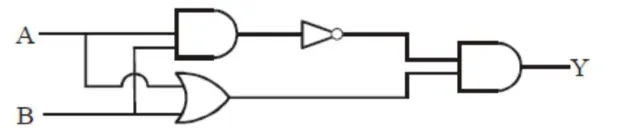

Which one of the following will be the output of the given circuit?

Question:

Which one of the following will be the output of the given circuit?

  1. (1) NOR Gate

  2. (2) AND Gate

  3. (3) AND Gate

  4. (4) XOR Gate


Correct Option: , 4

Solution:

(4)

Conceptual
