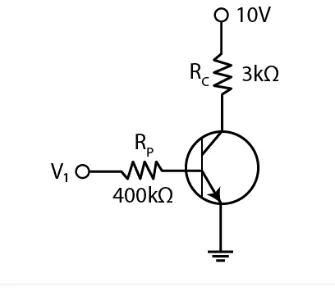

In the circuit shown in the figure,

Question:

In the circuit shown in the figure, when the input voltage of the base resistance is 10V, Vbe is zero and Vce is also zero. Find the values of Ib, Ic and β.

Solution:

Vi = 10 V

Rb = 400 kilo ohms

Vbe = 0

Vce = 0

Rc = 3 kilo ohms

Ib = 25 micro ampere

Rc = 10 V

Ic = 3.33 mA

Current gain = 133
