Question:

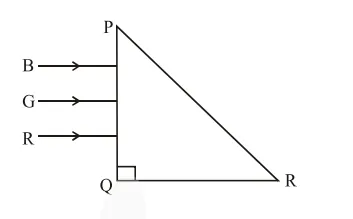

Three rays of light, namely red (R), green (G) and blue (B) are incident on the face $P Q$ of a right angled prism $\mathrm{PQR}$ as shown in figure.

The refractive indices of the material of the prism for red, green and blue wavelength are $1.27,1.42$ and $1.49$ respectively. The colour of the ray(s) emerging out of the face PR is :

  1. greenĀ

  2. red

  3. blue and green

  4. blue


Correct Option: , 2

Solution:

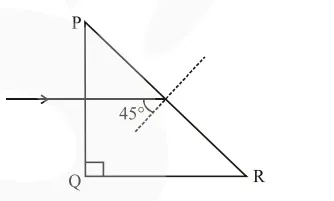

Assuming that the right angled prism is an isoceles prism, so the other angles will be $45^{\circ}$ each.

$\Rightarrow$ Each incident ray will make an angle of $45^{\circ}$ with the normal at face PR.

$\Rightarrow$ The wavelength corresponding to which the incidence angle is less than the critical angle, will pass through PR.

$\Rightarrow \theta_{C}=$ critical angle

$\Rightarrow \theta_{\mathrm{C}}=\sin ^{-1}\left(\frac{1}{\mu}\right)$

$\Rightarrow$ If $\theta_{C} \geq 45^{\circ}$

the light ray will pass

$\Rightarrow\left(\theta_{\mathrm{C}}\right)_{\mathrm{Red}}=\sin ^{-1}\left(\frac{1}{1.27}\right)=51.94^{\circ}$

Red will pass.

$\Rightarrow\left(\theta_{\mathrm{C}}\right)_{\text {Green }}=\sin ^{-1}\left(\frac{1}{1.42}\right)=44.76^{\circ}$

Green will not pass

$\Rightarrow\left(\theta_{\mathrm{C}}\right)_{\text {Blue }}=\sin ^{-1}\left(\frac{1}{1.49}\right)=42.15^{\circ}$

Blue wiHf not pass

$\Rightarrow$ So only red will pass through PR.
