Hey, do you want to learn about Reflection through Concave Mirror? If yes. Then keep reading.

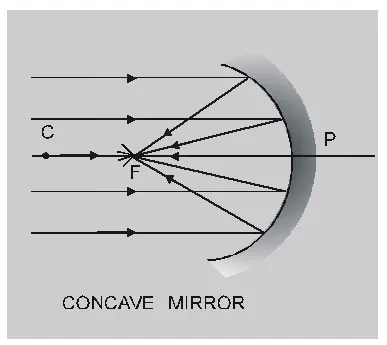

Reflection through the concave mirror:


Reflection through Concave Mirror
F = Principal focus

P = Pole of mirror

C = Centre of curvature.

PC = Radius of curvature.

PF = Focal length.

When a narrow beam of light traveling parallel to the principal axis is incident on the reflecting surface of the concave mirror, the beam after reflection converges at a point on the principal axis.

Rules for ray diagrams:

  1. When a ray falls in the direction of the center of curvature of the mirror then it reflects back along the same path.
  2. A ray, parallel to the principal axis will after reflection, pass through the focus.
  3. A ray, passing through the focus is reflected parallel to the principal axis.

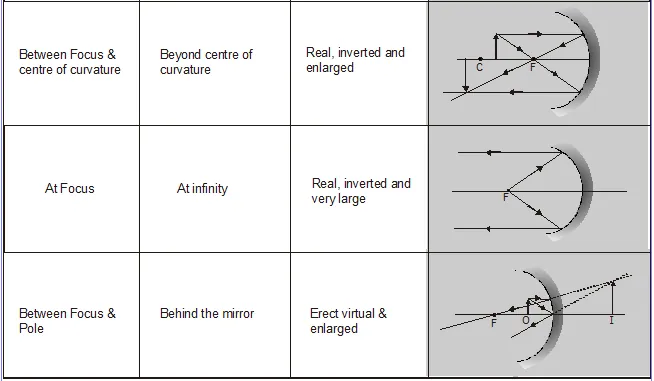

Image formed by the concave mirror:

Reflection through Concave Mirror Reflection through Concave Mirror
So, that’s all from this article. I hope you get the idea about Reflection. If you found this article informative then please share it with your friends. If you have any confusion related to this topic, then you can ask in the comments section down below.

For a better understanding of this chapter, please check the detailed notes of Ray Optics. To watch Free Learning Videos on physics by Saransh Gupta sir Install the eSaral App.
