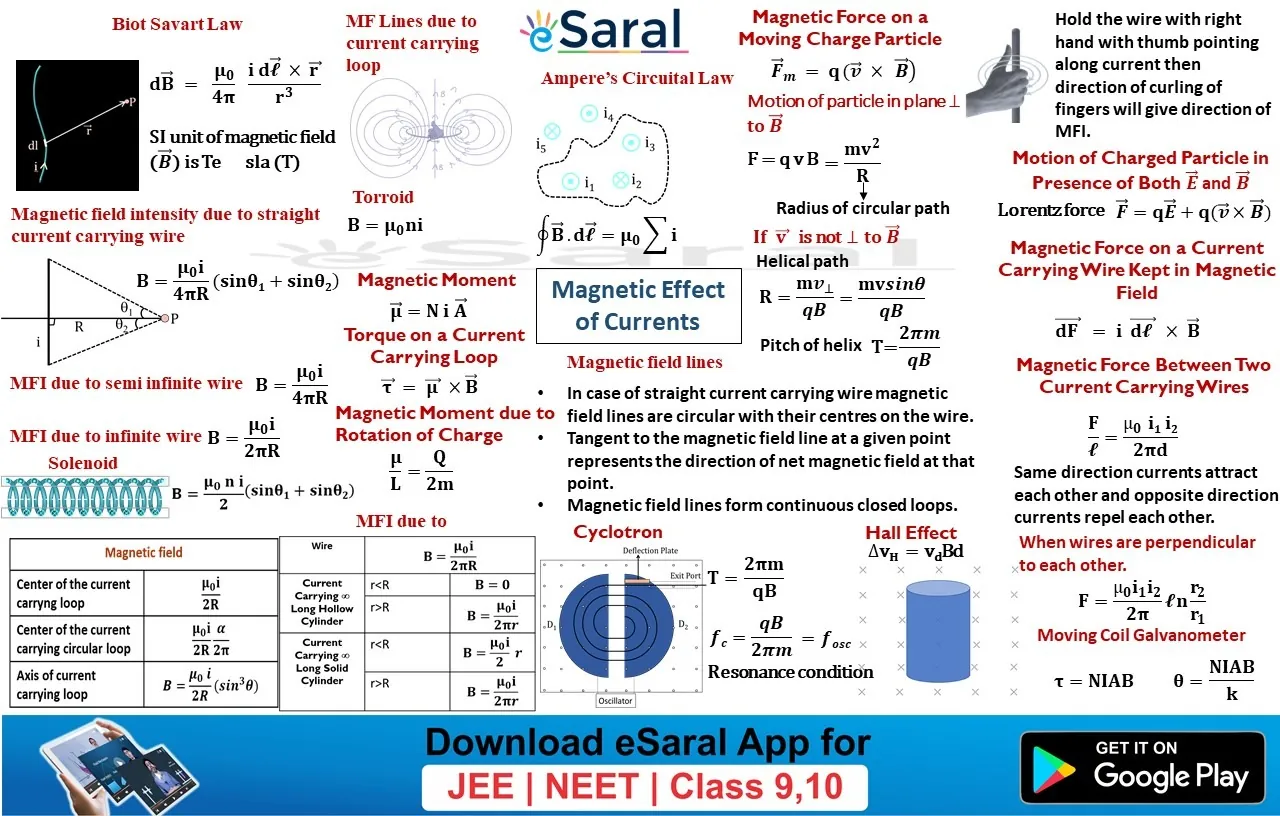

Magnetic Effects od Current in Class 12th comprises variety of cases with important formulae and key points. So here is the mind map to help you in remembering all the formulae and important key concepts on finger tips. Download
Frequently Asked Questions
Find answers to common questions.
What is covered in the Magnetic Effects of Current Class 12?
Magnetic Effects of Current (NCERT Class 12 Physics Chapter 4) covers the Biot-Savart Law, Ampere's Circuital Law, magnetic field due to straight wires, circular loops, solenoids, and toroids, the Lorentz force on moving charges and current-carrying conductors, the cyclotron, and the moving coil galvanometer. All these topics are directly testable in JEE Main, JEE Advanced, and NEET.
How many questions come from this chapter in JEE Main?
JEE Main typically includes 2 to 3 questions from Moving Charges and Magnetism in each session. Based on NTA papers from 2019 to 2024, the chapter consistently appears, with Biot-Savart Law, Ampere's Law applications, and force on moving charges being the most frequently tested sub-topics.
Which formula is most important for NEET from this chapter?
The most frequently tested formulas in NEET are the magnetic field at the centre of a circular loop (B = μ₀I/2R), the force on a moving charge (F = qvB sinθ), the solenoid field (B = μ₀nI), and the galvanometer equation (θ = nABI/k). Committing these four to memory covers the majority of NEET questions from this chapter.
What is the difference between Biot-Savart Law and Ampere's Law?
Biot-Savart Law calculates the magnetic field produced by an individual current element and works for any geometry, but requires integration. Ampere's Circuital Law uses a closed loop integral and is far faster when the current distribution has high symmetry (like infinite wires, solenoids, and toroids). Use Ampere's Law whenever there is cylindrical or planar symmetry.
How do I download the mind map for Magnetic Effects of Current?
Click the Download button on this page to get the Magnetic Effects of Current mind map as a PDF. The file is free and contains all six concept branches — Biot-Savart Law, Ampere's Law, Lorentz force, solenoid/toroid fields, torque on a current loop, and galvanometer — with formulas and key conditions clearly labelled.
